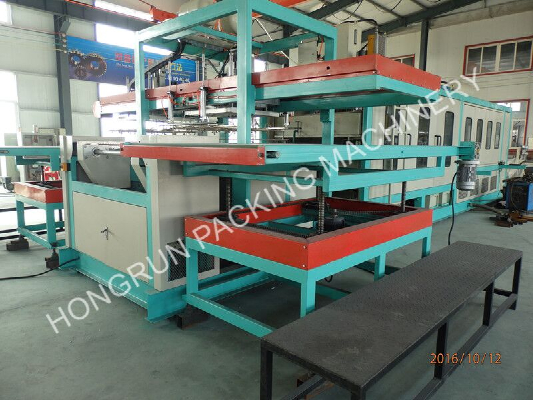

Full-auotmatic PS foam container making machine/PS food box machine

This forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc.Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.

Demands of public works

Cooling water: 1 t/h

Production efficiency: 3-5 s/mould

Installed power (approx):168KW

Total weight (approx):16T

Mounting size: 12m×2m×2.6m

Compressed air: 0.4~0.7 m3/min,0.7Mpa

Voltage: 380V   frequency: 50 HZ
