- Place of Origin: china
- Brand Name: hongrun
- Model Number: HR-6000

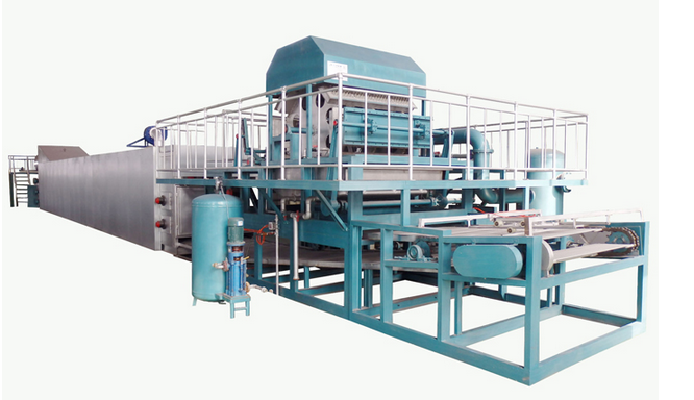

Automatic paper egg tray making machine HR-6000
Egg Tray Machine is used for making the molded pulp products,such as egg tray,egg carton/box ,fruit tray ,industrial tray from waste paper.And the energy consumption of our company drying line is 20%-30% less than the same domestic industry,It has very significant energy saving and reached world leading level. small invest
1.Mainly producing the pulp molded products,such as egg tray ,egg box, fruit tray,coffee tray, ,industrial tray
2.Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazines
3.The main energy can be chosen from diesel oil, natural gas ,LPG, heavy oil,coal,electricity etc,depending on local cost.
4.We have the egg tray machine with output from 2000pcs/hr, 3000pcs/hr,4000pcs/hr, 6000pcs/hr.
5.Fully-automatic control, PLC Touch screen controller.
6.Stainless steel pulp tank,the surface of platens covered with stainless steel.
- Place of Origin: china
- Brand Name: hongrun
- Model Number: HR-6000
Technology Parameters
Model | HR-6000 |
Forming width | 410-710MM(460-760MM materials) |
Forming length | 600-1220MM |
Forming height | 200MM |
Thickiness of materials | 0.2-1.5MM |
Production power | 220-500times/hour(according to products) |
power | 380Vs/220Vs/50Hzs(Three mutually four lines) |
Furnace power | 18-35KW |
Required to install air pump | 20HP |
Mechanistic Dimensions | L6800*W1600*H2650MM |
Net weigh | 3000KG |
