- Place of Origin: china
- Brand Name: hongrun
- Model Number: HR-1000/1100

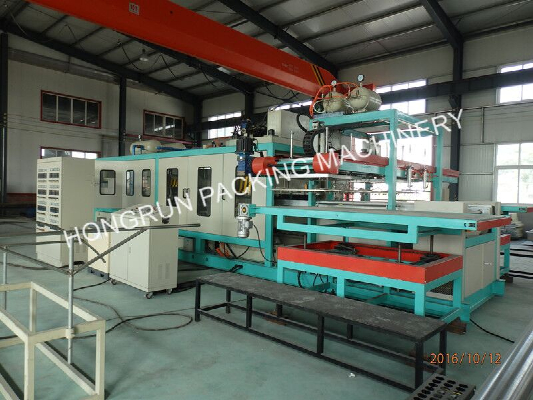

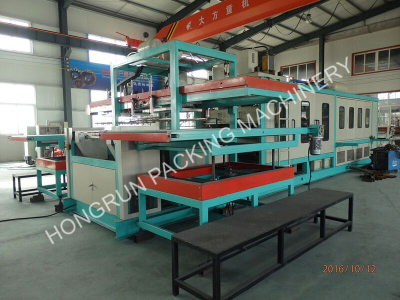

ps food box machine/PS foam food container machine Good Exported to more than 50 countries !
This forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc.Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
Demands of public works
Cooling water: 1 t/h
Production efficiency: 3-5 s/mould
Installed power (approx):168KW
Total weight (approx):16T
Mounting size: 12m×2m×2.6m
Compressed air: 0.4~0.7 m3/min,0.7Mpa
Voltage: 380V frequency: 50 HZ
- Place of Origin: china
- Brand Name: hongrun
- Model Number: HR-1000/1100
Main technical parameters
Model | Unit | HR-1040 |
Max. forming area | mm2 | 1000×1100 |
Max. forming depth | mm | 80 |
Production efficiency | s/die | 3 - 8 |
Forming pressure | T | 15 |
Mounted power | kw | 168 |
Total weight | T | 16 |
Installation size | m | 13×2×3.2 |
